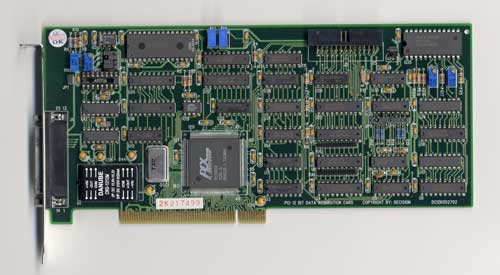

PCI 12 Bit AD/DA

The PCI bus 12 bit data acquisition card is a 32 bits PCI bus adapter with Plug and Play (PnP) features, it is a programmable I/O interface for Pentium or compatible computers. The PnP features let hardware configuration for IRQ and I/O address is detected by BIOS automatically, you don't need set switch and jumper.

The PCI bus 12 bit data acquisition card is a high precision data conversion/acquisition system. It contains 16 analog to digital channels with unipolar or bipolar input, 2 digital to analog channels with unipolar or bipolar output and 1 digital I/O channel with 16 bit line. The on board 8254(71054) chip provides programmable interval timer/counter functions to trig A/D conversion. The PCI bus 12 bit data acquisition card also provides interrupt driven for convention A/D input.

Bus: 32 Bit PCI Karte mit PnP Features

Funktion:

• Programmable I/O control functions.

• Provides 16 A/D channels and the resolution is 12 bits.

• Provides 2 D/A channels and the resolution is 12 bits.

• Unipolar or bipolar selectable.

• Input voltage range from 0 to 10V or 0 to 20V for unipolar, and from -5V to 5V or -10V to 10V for bipolar.

• Provides 1 digital input/digital output channels and the resolution is 16 bits.

• Provides three 16 bits counter to trig A/D conversion.

• Provides software, external hardware signal or internal counter to trig A/D conversion.

• By using sampling and hold to get A/D signals.

• Interrupt or polling driven selectable.

• Gain control factor selectable from 1 to 8.

Software/Treiber:

Englisches Handbuch mit Einstellplan, Anschlußplan, Datenblättern und Programmbeispielen.

Mit Windows-98/NT/2000/XP/WIN-7/Win-8 Treibern und Programmierbeispielen

Pro Lieferung erhalten Sie eine frisch gebrannte „Decision-Computer Deutschland Service CD“ mit aktuellen Treibern, Handbüchern, Installationsanleitungen und deutschen Zusatzinformationen.
Der Umfang ist vom Produkt abhängig!



Packungsinhalt: AD12-P5 Karte, Software-CD, Handbuch
