ISA Multi 8255 48 (192) I/O

ISA Multi 8255 192 I/O h

f ISA Multi 8255 48 I/O

ISA Multi 8255 48 I/O
Item-No.: 82192-L

Unit price € 54,50 - plus 19% VAT

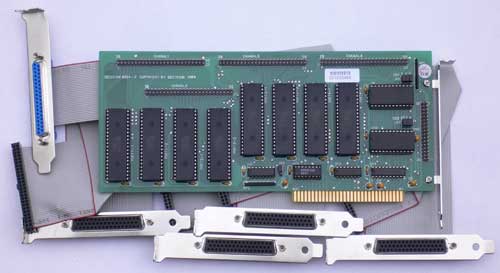

ISA Multi 8255 192 I/O
Item-No.: 82192-V

Unit price € 88,-- - plus 19% VAT

Dealer Inquiry - Catalogue + Quotation


Bus: ISA 8-Bit

The 8255 I/O card is a programmable peripheral interface for PC/XT, PC/AT, 80386, 80486 or compatible. The interface card contains 8254 chip and 8255 chips, the 8254 chip provides programmable interval timer/counter function, and the 8255 chips provide programmable input/output functions

  • 2 (8) x 8255 (OKI-M82C55A-2) - 2 x 8254 (CP82C54)
  • 82192L with unused sockets for 6 x 8255
  • Programmable l/O control functions
  • 24 I/O Ports - 8 lines each
  • Up to 48 I/O lines.  TTL - 5V
  • Three independent 16 bits counter
  • Port address selectable H100-H128 or H130- H15B (H300 - H32B or H280 - H2AB by order)
  • Connection with 4x 50 and 1 x 34 Pin IDC-PIN + DSUB in the slotbracket
  • The 8255 I/O card is a programmable peripheral interface for PC/XT, PC/AT, 80386, 80486 or compatible. The interface card contains 8254 chip and 8255 chips, the 8254 chip provides programmable interval timer/counter function, and the 8255 chips provide programmable input/output functions.

Software/Driver:

German bulk manual and English manual with adjusting plan, terminal diagram, data sheets and sample programs.

Windows-98/NT/2000/XP, Linux, DOS  driver or info.

Per shipping you receive freshly burned „Decision Computer Germany service CD“ with current drivers, manuals, installation guidances and German additional information. The extent depends on the product!
